Selecting the right equipment goes far beyond a simple factory upgrade. It acts as a critical profitability bottleneck for your entire operation. The drying process directly dictates downstream success in plywood and LVL production. You must control this step perfectly. Incorrectly dried material leads to catastrophic thermal pressing failures. Retaining excess moisture causes severe panel delamination or blow-outs. Over-drying creates brittle fibers absorbing too much glue. This results in weak, starved joints.
Identifying the ideal veneer dryer requires careful alignment of several factors. You must match the conveying method, heat source, and airflow dynamics to your needs. These choices depend heavily on your specific production volumes and wood species. We will guide you through these precise variables. You will learn exactly how to configure the optimal solution for your plant.
Veneer thickness dictates the conveying type: Roller dryers dominate thick core veneers (>1.5mm), while mesh belt dryers are essential for fragile, decorative surface veneers (<1.5mm).
Airflow and heat sources drive Total Cost of Ownership (TCO): Advanced cross-ventilation and thermal oil systems offer higher precision and efficiency than traditional longitudinal steam setups.
Moisture control is the ultimate metric: Industrial dryers must consistently hit a 6–12% target moisture content (MC) to optimize glue consumption and press yields.
Risk mitigation is mandatory: Modern setups require integrated fire suppression (spark detection) and pre-sorting strategies (separating sapwood from heartwood).
Drying wood sounds deceptively simple. However, the physical reality involves complex thermodynamic reactions. Failing to master these reactions severely damages your bottom line. We must examine how precision impacts the entire manufacturing cycle.
The physics of failure during hot pressing are harsh. Retaining too much moisture creates severe complications. If moisture content exceeds 12–14%, the heat of the press turns this water into steam. The trapped steam builds immense internal pressure. When the press opens, this pressure violently escapes, causing panel "blows" or delamination. You lose the entire panel.
Over-drying poses an equally destructive threat. Dropping moisture below 4% results in excessively brittle wood. This triggers a condition known as case hardening. Furthermore, the overly dry fibers rapidly absorb adhesive. This deep absorption pulls glue away from the surface, creating "starved joints." The resulting plywood panels lack structural integrity and often fail standard bond tests.
Understanding drying mechanics helps you operate your equipment effectively. Industrial drying universally occurs across three distinct physical phases:
Heating phase: The machine rapidly raises the wood temperature. The goal is heating the core without instantly drying the exterior. This careful balance prevents surface hardening. If the surface hardens prematurely, it traps moisture inside the core permanently.
Constant rate phase: The machine evaporates free water trapped within the cell cavities. Capillary action pushes this liquid to the surface. Evaporation happens at a steady, predictable pace during this window.
Falling rate phase: This final stage involves removing bound water embedded directly in the cell walls. The wood begins to shrink physically. You must apply strict temperature control here. Improper heat application during this vulnerable phase causes honeycombing, severe cracking, and buckling.
Optimizing this process yields massive financial returns. Precision drying routinely reduces overall glue consumption by up to 20%. Well-dried wood maintains optimal surface tension, requiring less adhesive spread. Furthermore, tight moisture control increases the yield of high-grade veneers by 3–5%. You throw away less cracked or warped material.
Manufacturers classify these machines primarily by how they transport wood through the heating chamber. Your choice of conveying mechanism strictly depends on the thickness and fragility of your raw material.
This design represents the workhorse of the plywood industry. It utilizes upper and lower heated rollers. They continuously transport and actively flatten the wood as it moves through the chamber.
Mechanism: Direct contact heating combined with mechanical flattening. The heavy rollers iron out natural wrinkles.
Best For: Thick core veneers typically measuring thicker than 1.5mm. They excel in high-capacity production environments.
Limitations: The mechanical pressure is aggressive. They are completely unsuitable for very thin, fragile, or highly decorative face veneers. The rollers will crush or tear delicate sheets.
Delicate materials require gentle handling. Mesh belt designs eliminate aggressive rolling pressure entirely.
Mechanism: The system transports wood between upper and lower wire mesh belts. It moves the material safely through a hot-air circulation chamber.
Best For: Thin face veneers ranging from 0.1mm to 1.5mm. Species like birch or beech thrive here. Advanced models feature sine-wave guiding systems. These systems manage high-moisture "omega-warped" sheets perfectly without jamming the line.
Limitations: The mesh belts trap debris. They require much more frequent cleaning and maintenance compared to heavy-duty solid rollers.
Some applications demand absolute, uncompromising flatness. Standard continuous lines cannot achieve this for extreme thicknesses.
Mechanism: This machine operates exactly like a breathing press. It clamps the wood firmly between heated solid metal platens, applying direct thermal energy under high pressure.
Best For: Extremely thick core boards exceeding 4mm. They also suit large 4x8ft full-sheet formats where absolute flatness remains non-negotiable.
Limitations: They suffer from extremely low production capacity. A single high-speed peeling line may require two or three press units just to keep up with the volume.
Budget-conscious operations sometimes utilize simplified structural designs for secondary tasks.
Mechanism: These utilize a basic structure relying on square tubes for heat conduction. Simple exhaust fans remove the humid air.
Best For: Secondary drying or dehumidification. Factories often use them for semi-dry stock after initial natural sun-drying in the yard.
Limitations: They offer remarkably slower drying times. They feature inferior temperature control. Furthermore, they suffer from a shorter typical lifespan, often failing after 3–5 years of heavy use.
Dryer Type | Primary Mechanism | Ideal Veneer Thickness | Core Advantage |
|---|---|---|---|
Roller | Heated Rollers | > 1.5mm | High Volume / Flattening |
Mesh Belt | Wire Mesh Belts | 0.1mm – 1.5mm | Gentle Handling / No Tearing |
Hot Platen | Breathing Metal Press | > 4mm | Absolute Flatness |
Square Tube | Tube Conduction | Variable (Semi-dry) | Low Initial Cost |
Conveying handles the physical movement, but thermodynamics handle the water removal. Modern wood veneer dryer systems utilize specific heat sources and airflow geometries to optimize energy transfer.
Your factory's existing infrastructure largely dictates your ideal thermal energy source.
Steam: This remains highly stable and exceptionally well-controlled. It provides an ideal solution for mills possessing existing boiler infrastructure. Steam prevents accidental scorching easily.
Thermal Oil: This system circulates specialized oil. It allows for much higher operating temperatures than steam. It provides incredibly precise thermal control. We recommend thermal oil for heavy-duty, continuous manufacturing operations.
Direct Combustion/Gas: This method fires gas burners directly into the airstream. It delivers ultra-rapid heating. However, it requires highly strict emission filters and advanced spark control systems to prevent fires.
How air hits the wood matters just as much as how hot the air gets. Poor airflow wastes massive amounts of energy.
Longitudinal Ventilation: The heated air flows parallel to the feed direction. This traditional method is highly prone to wind speed loss. The air cools and gathers moisture as it travels, causing noticeably uneven drying from one end to the other.
Cross Ventilation (Vertical Jetting): Advanced systems direct high-speed air perpendicularly onto the surface. This vertical impact is crucial. It physically breaks through the "wet air boundary layer" resting on the wood surface. Shattering this invisible layer drastically accelerates heat transfer and dramatically improves efficiency.
Making the right purchase requires an analytical approach. You must weigh daily throughput against material fragility. We use a structured decision framework to match equipment with factory realities.
You should view your raw material as the ultimate deciding factor. Do not buy a machine simply because it boasts high speeds. Speed destroys fragile wood.
Equipment Decision Chart
Raw Material Profile | Recommended System | Airflow Strategy |
|---|---|---|
High volume, thick core (>1.5mm) | Roller System | Cross Ventilation |
Fragile decorative face (0.5mm) | Mesh Belt System | Cross Ventilation |
Mixed batches, high moisture variance | Mesh Belt with Sine-Wave Guide | Vertical Jetting |
Extreme thickness (>4mm) | Hot Platen Press | Direct Contact Heating |
Modern equipment must adapt to fluctuating energy costs. Look specifically for multi-stage drying zones. These zones allow you to program step-down temperature profiles. You can hit the wet wood with extreme heat initially, then taper the temperature down during the falling rate phase to prevent cracking.
Heavy-duty insulation is equally critical. Demand Kevlar seals around doors and specialized insulated floorings. Furthermore, prioritize modularity. Purchasing standard 2.25m modular sections allows your factory to scale up effortlessly. You simply bolt on extra sections when your capacity demands increase.

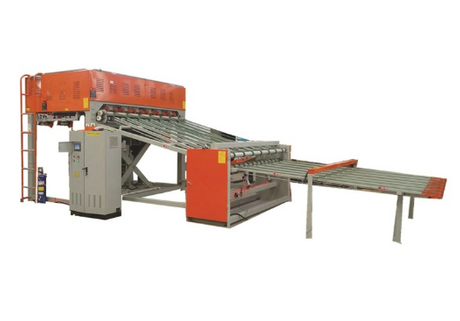

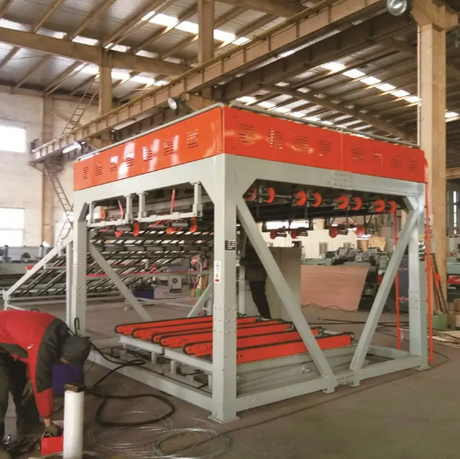

Manual labor introduces severe inconsistencies. You must consider automation. Automated feeder systems maintain perfect spacing, preventing overlapping sheets from remaining wet. Integrated stacking systems reduce physical damage during unloading. Most importantly, install visual and moisture measurement systems. These sensors scan the wood exiting the chamber, dynamically grading the sheets and rejecting overly wet pieces automatically.
Buying the equipment only solves half the puzzle. Running a high-temperature chamber filled with dry wood and moving air introduces severe daily risks. You must operate with strict protocols.
These chambers present an inherently high-risk environment. Wood dust, high heat, and oxygen create a perfect hazard triangle. Buyers must specify automatic spark detection systems. These optical sensors trigger deluge or sprinkler networks instantly upon detecting an ember. Furthermore, install rapid-exhaust dampers. These dampers starve a potential fire of oxygen while venting dangerous smoke away from the factory floor.
Many novice operators feed mixed moisture profiles into the machine simultaneously. We strongly warn against this practice. Sapwood inherently carries drastically higher initial moisture levels than heartwood. If you mix them in the identical run, you guarantee failure. The heartwood will severely over-dry and crack, or the sapwood will exit completely wet. Pre-sorting logs before peeling is a mandatory operational reality for consistent quality.
Best Practices for Operations
Calibrate your moisture sensors daily using manual pin-meter checks.
Isolate species before peeling to maintain consistent batch chemistry.
Clean internal debris screens every single shift to maintain airflow velocity.
Common Mistakes to Avoid
Running the machine empty for extended periods wastes massive thermal energy.
Ignoring pitch buildup on rollers leads to permanent mechanical indentations on the wood.
Bypassing spark detectors during maintenance introduces catastrophic fire liabilities.
You cannot escape resin and pitch buildup. Wood naturally bleeds sticky sap when heated. This sap coats rollers, clogs mesh belts, and blocks ventilation jets. You must specify highly accessible door designs during purchase. Single-hand operation hinges allow workers to enter the machine quickly for routine cleaning. Neglecting this cleaning causes severe efficiency drops and drastically elevates fire hazards.
Mastering this critical manufacturing step separates highly profitable mills from struggling ones. A successful purchase balances your initial capital against long-term energy consumption, routine maintenance downtime, and your final plywood yield. Precision directly protects your margins.
Your next steps require a thorough internal audit. Before requesting quotes from manufacturers, document your exact required thickness range. Assess your existing thermal infrastructure carefully. Determine whether you can leverage existing steam boilers or if you require an upgraded thermal oil circuit. Finally, calculate your absolute minimum daily cubic-meter throughput. Armed with this data, you can specify a machine built entirely for your exact operational reality.
A: The ideal range typically falls between 6% and 12%. The precise number depends heavily on your specific adhesive formula and downstream hot pressing requirements. Hitting this exact window prevents panel blow-outs and eliminates starved glue joints.
A: A highly reliable industry benchmark states that evaporating 1kg of water requires approximately 1.2 to 1.5kg of steam. This ratio shifts slightly depending on your machine's insulation quality and its exhaust recovery efficiency.
A: No. Different wood species feature vastly different cellular structures and initial moisture contents. Handling diverse woods requires customized temperature curves and varied feed speeds. Using a single setting for everything inevitably causes cracking or severe case hardening in sensitive species.
