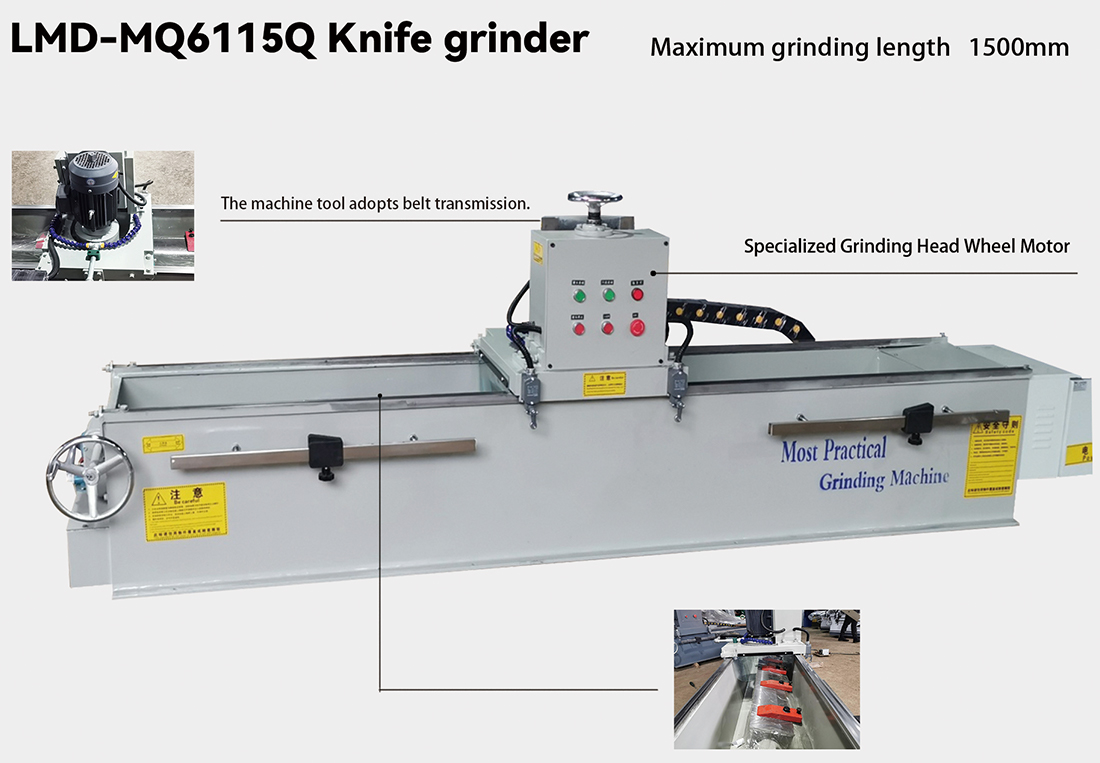

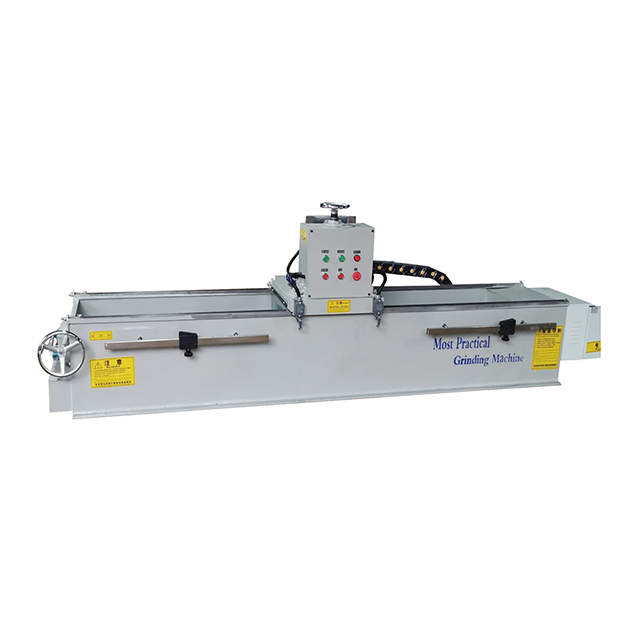

Parameters Of LMD-- MQ6115Q Simple Knife Sharpener
This machine is an independently developed and manufactured product by our company, specifically designed for remote areas where sharpening conditions are inconvenient, such as independent rotary cutting factories, sheet metal factories, and small-scale printing and cutting paper factories. It is a cost-effective and practical machine of high quality.
Suitable for: small-scale rotary cutting factories, sheet metal factories, and small printing and paper cutting factories.
Model | LMD—MQ6115Q |
Maximum grinding length | 1500mm |
Worktable size (L×W) | 1500*180mm(Welding) |
Grinding wheel dimensions | 200*100*32mm |
Grinding accuracy | ≤0.1mm/m |
Working Voltage | 380v |
Back-and-forth speed of grinding head | 14m/min |
Adjustable grinding head angle | ±10° |
Adjustable table angle | ±90° |
Grinding head drive type | Belt drive |
Grinding head motor powe | 2.2KW(dedicated motor) |
Travel Motor Power | 0.75KW dedicated motor |
Water pump motor power | 0.04KW |
Total power | 3.5KW |
Total Weight | 650KG |
Overall Dimensions | 2850*1200*1100mm |
