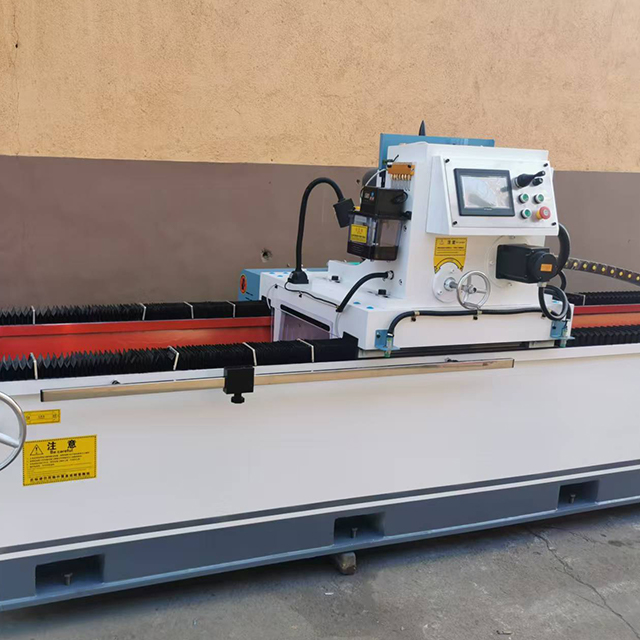

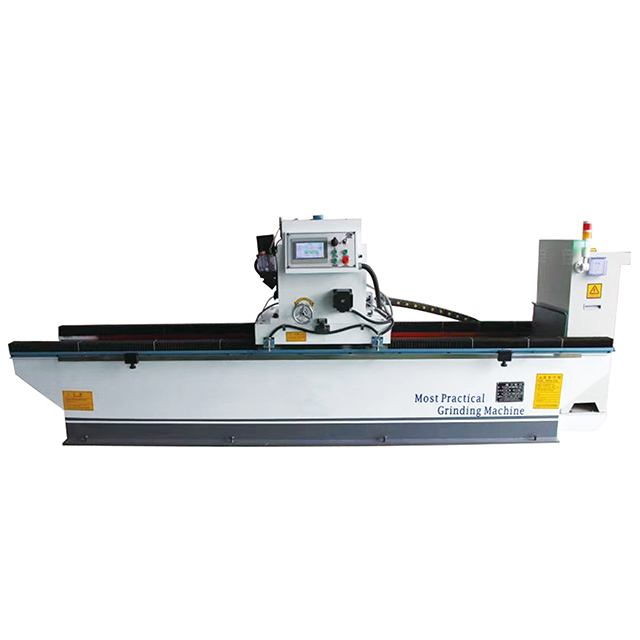

Parameters Of LMD- MZ7130 Electromagnetic Fully Automatic Knife Sharpener
Maximum Grinding Length | 3200mm |
Worktable Area (Length * Width) | 3180*180mm (Electromagnetic Chuck) |
Cooling System | Water tank with built-in water pump for water spray circulation cooling |

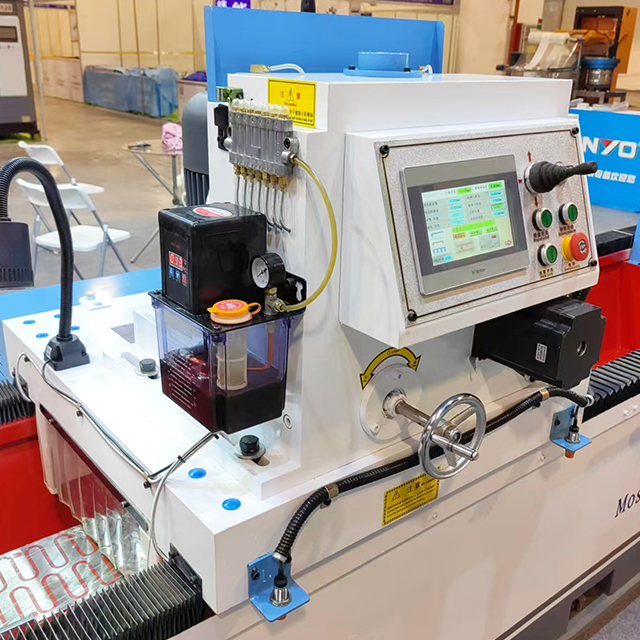

Lubrication System | The whole machine adopts a centralized oil supply |
Grinding Wheel Size | 200*100*32mm (Can be selected arbitrarily) |
Guide Rail Selection | Machine tool guide rail with wear-resistant strips installed |
Grinding Precision | ≤0.5mm/m |
Working Voltage | 380v (Customizable voltage) |
Reciprocating Speed of Machine Tool Grinding Head | About 17m/min |
Grinding Head Transmission Method | V-belt transmission |
Power of Grinding Head Motor | 4.0KW (Special motor for grinding machine) |
Power of Lifting Motor | 0.75KW |
Power of Water Pump Motor | 0.125KW |
Power of Stroke Reciprocating Motor | 0.75KW (Special motor for grinding machine) |
Total Power | About 5.5KW |
Total Weight | About 2800KG |
Overall Dimensions | 5350*1300*1300mm |
The side bed of the machine tool is constructed using national standard double-layer steel plates with inner reinforcing ribs.
The base plate is welded from flat, thick steel plates and has undergone special treatment, ensuring the overall stability of the machine, free from vibrations and deformation.
The travel support plate of the machine is made from precision-cast iron, preventing deformation.
The travel system employs a cycloidal pin wheel reducer in combination with a national standard motor to achieve smooth movement, enhancing grinding quality and work efficiency.

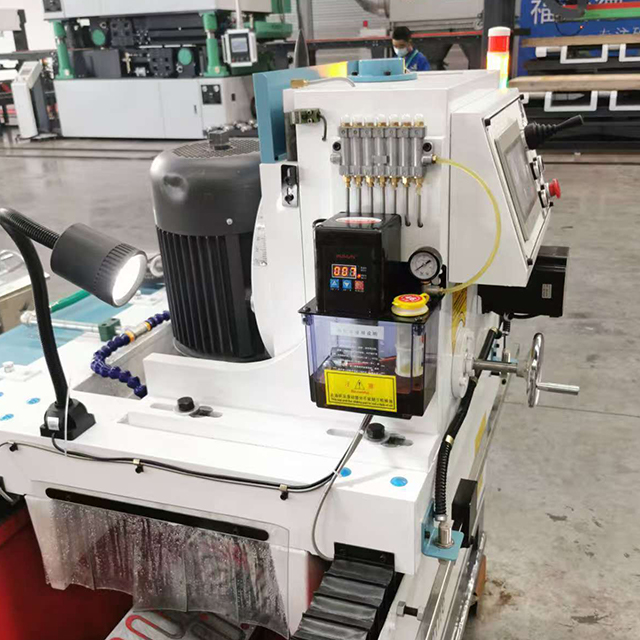

The grinding head is equipped with a quick lift mechanism, making wheel replacement more convenient and faster, improving work efficiency, reducing labor intensity, and facilitating adjustments with a thickened lead screw and an adjustable copper nut to easily control the axial clearance of the screw.

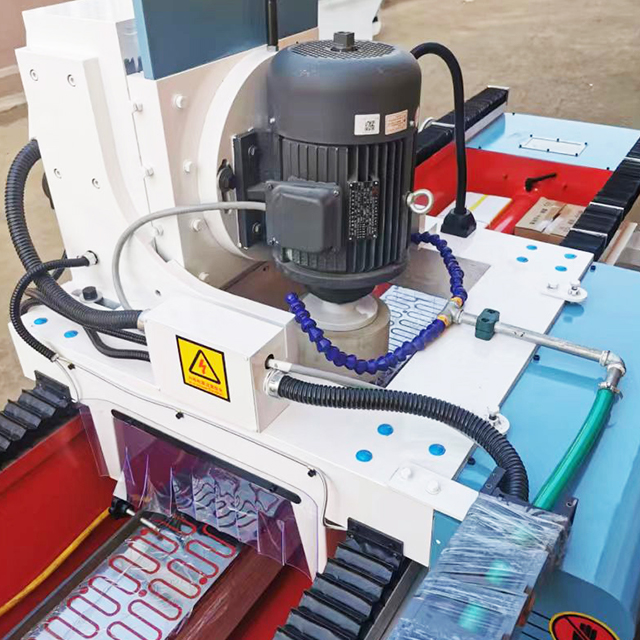

The grinding head uses a dedicated national standard grinding machine motor, designed reasonably to improve grinding accuracy and extend service life.
The electromagnetic disk uses a high-quality, durable electromagnetic chuck that meets national standards, characterized by low heat generation, strong holding force, and long service life.
Various sizes and shapes of grinding machines can be custom-made according to user requirements.
| |
|  |
Frequently Asked Questions (FAQ)
1.What products does your company offer?
Our company mainly provides equipment for the plywood and veneer industry.
Our main products include:
• Wood Veneer Machines
• Plywood Making Machines
• Related Equipment and Accessories (both main machines and auxiliary equipment)
2.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
Additionally, we offer import and export agency services to help facilitate trade in the industry.
3. What is your delivery timeline for the products?
We provide customized delivery schedules based on specific product requirements and customer needs. The exact delivery time will depend on the type and quantity of equipment ordered.
4. What warranty do you offer on your products?
We offer a one-year warranty on major components of our machines. The warranty covers manufacturing defects and issues related to the main parts of the equipment. Specific warranty details will be provided along with the product's technical specifications.
5. Do you provide installation and after-sales services?
Yes, we offer comprehensive after-sales support:
• Online Support: We provide video tutorials, technical drawings, and installation manuals to assist with the setup and operation of our equipment.
• Offline Support: Our experienced technical staff can assist with on-site installation and commissioning, ensuring that the machines are properly set up and fully operational.
6. Which countries do you frequently export to?
We regularly export to various countries, including:
Brazil (where we have local distributors), Argentina, Paraguay, Fiji, Pakistan, Bulgaria, Ghana, Etc.
We have experience working with these countries and can visit their factories and see our machines.
