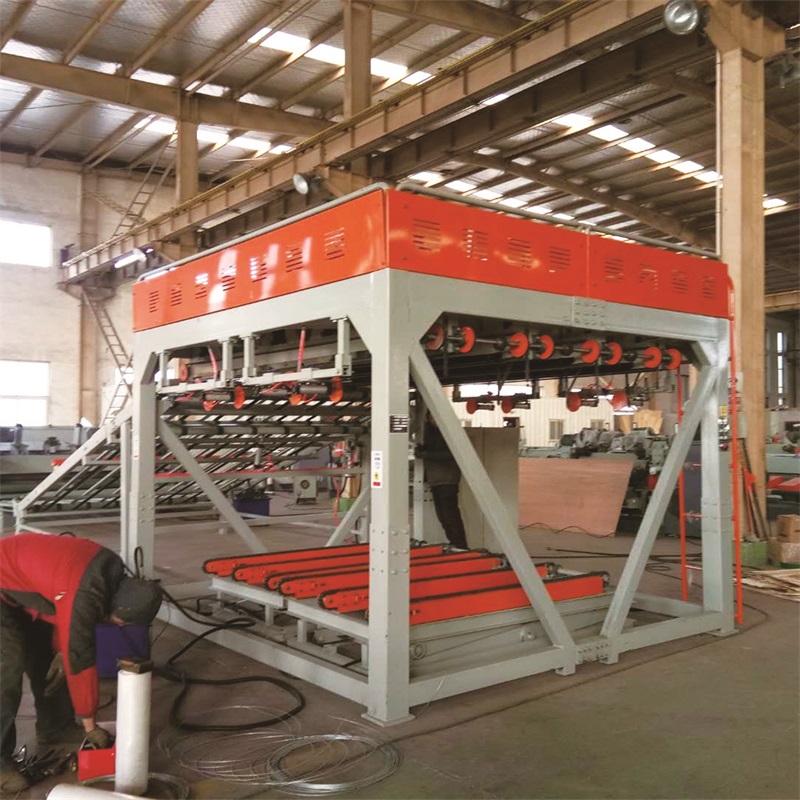

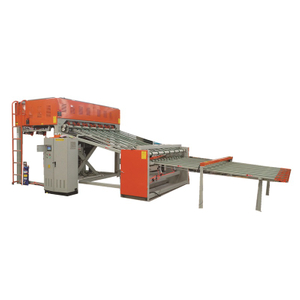

The 2000-2600mm High-precision Veneer Stacker for Plywood is engineered to address the unique challenges of handling thin, delicate veneer sheets in large-scale production.
| Availability: | |
|---|---|
| Quantity: | |
Veneers—often as thin as 0.5mm—are prone to damage from static cling, misalignment, and rough handling, making precision and gentleness critical. This system, designed for widths of 2000–2600mm, combines vacuum technology, real-time monitoring, and servo-driven controls to achieve micron-level accuracy, ensuring veneer quality is preserved while maximizing throughput in high-volume manufacturing environments.
Parameter | Value |
Stacking Width Range | 2000–2600mm |
Veneer Thickness | 0.5–3mm |
Alignment Accuracy | ±0.05mm |
Vacuum Pressure | -80kPa |
Cycle Time | 8–12 seconds/stack |
Noise Level | ≤75dB |
To prevent slippage and damage, the stacker employs multi-zone vacuum suction with individually controlled cups. Each zone adjusts suction force based on veneer thickness—lighter pressure for 0.5mm sheets and increased force for 3mm materials—eliminating the risk of tearing or creasing. The vacuum cups themselves are made from soft, durable silicone, designed to conform to minor surface irregularities without leaving marks, a key consideration for decorative veneers.
Misalignment during stacking can render entire batches unusable, which is why this system integrates vision-guided cameras paired with high-speed processors. These cameras scan veneer edges 50 times per second, identifying misalignments as small as 0.03mm. Servo-driven side guides then make micro-adjustments mid-cycle, ensuring edges align within ±0.05mm. Complementing this, air knives direct filtered compressed air across sheet surfaces, removing dust and debris that could disrupt alignment or cause defects.
Veneers are sensitive to vibration and sudden movement, so the stacker features a soft-start/stop mechanism that ramps acceleration and deceleration gradually. This minimizes stress on the material during transfer from conveyor to stack. Additionally, anti-static brushes positioned at entry points neutralize electrostatic charges, reducing dust adhesion and preventing sheets from clinging together—common issues in low-humidity production environments.
An IoT-enabled control system collects real-time data on stacking cycles, alignment accuracy, and vacuum performance, storing it in a cloud-based dashboard. Operators can monitor trends, such as increased cycle times indicating potential jams, and set alerts for maintenance needs. The system also stores up to 50 recipes for different veneer types, allowing one-touch changeovers between thicknesses or grades—critical for facilities producing multiple product lines.
Veneer Mills: Automates stacking of both decorative veneers (used in furniture) and structural veneers (used in plywood core layers).
Furniture Manufacturing: Integrates with CNC cutting lines to prepare precision-stacked veneers for lamination onto furniture frames.
Laminated Timber Production: Handles high-volume stacking of veneers for cross-laminated timber (CLT), ensuring uniform layer alignment for structural strength.
Automotive Interiors: Processes thin, high-quality veneers used in luxury vehicle dashboards and trim, where surface perfection is non-negotiable.
Q: How does the system handle moisture variations in veneers?
A: The vacuum pressure automatically adjusts based on moisture content—detected via integrated sensors—to maintain secure grip without over-compression, which can cause warping in damp veneers.
Q: What is the maximum number of sheets per stack?
A: Depending on thickness, it can stack up to 200 sheets of 0.5mm veneer or 30 sheets of 3mm veneer, with automatic height monitoring to prevent over-stacking.
Q: Does it require a dedicated air compressor?
A: Yes. A 6–8 bar compressed air supply is needed for vacuum generation and air knife operation, with a recommended flow rate of 150–200 liters per minute.
Q: Can it integrate with existing ERP systems?
A: Yes. The IoT platform supports API integration with common ERP software, allowing production data to sync with inventory and order management systems.
Stacking Width | <1300mm | |
Stacking Length | 2000-2600mm | |
Stacking Thickness | 0.5mm-3.6mm | |
Stacking Speed | Below 100 meters | |
Stacking Height | 0-1200mm | |
Sorting Grade | Triple-Grade Stacking per Pallet(Rough/Defective/Whole Boards) | |
Installed Power | 45KW | |
Operating Power | <30KW | |
Lifting Method | Hydraulic Lift Table Operation | |
Fur Conveying | Self-contained | |
Whole Board Outfeed | Full-Board Outfeed Unit (Chain-Driven with Gear Reducer) | Automatic Outfeed |
Overall Dimensions | 10m*3.3m*2.6m | |
Minimum Hole Detection | 50mm |
