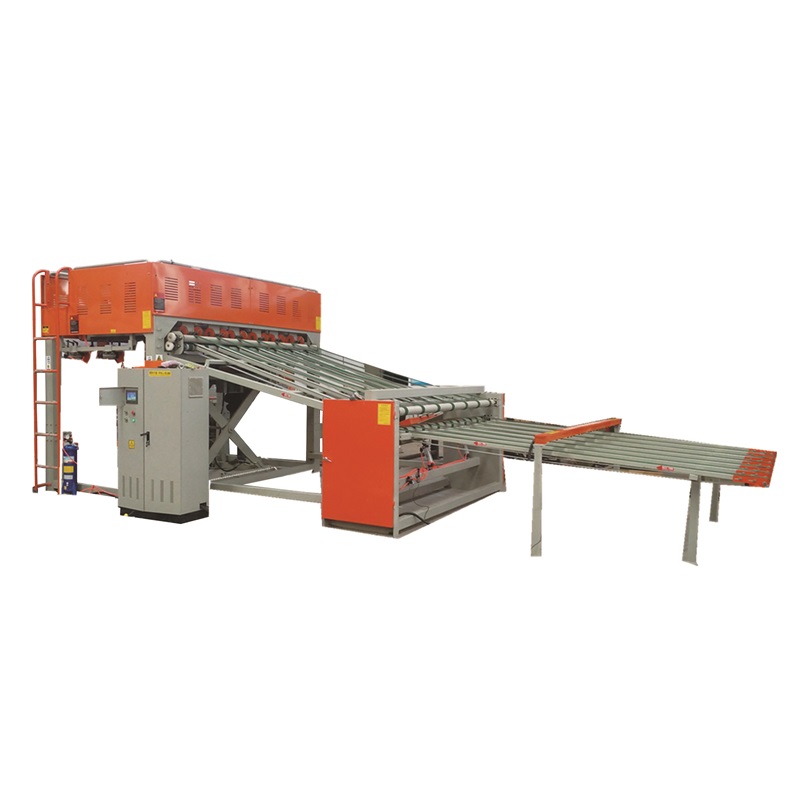

2600-A 6'&8' Automatic Vacuum Veneer Stacker for Plywood

Product Overview

Built for global plywood manufacturers and exporters, it combines rapid format switching with precision vacuum handling to meet the demands of high-volume production while adhering to ISO 9001 quality standards. Its robust design ensures reliability in 24/7 operation, making it a cornerstone of scalable manufacturing lines.

Product Specifications

Features

Dual-Format Flexibility

The stacker’s defining feature is its ability to switch between 6' and 8' sheets in ≤15 minutes using quick-release tooling. This includes pre-calibrated side guides, vacuum cup arrays, and conveyor extensions that lock into place without specialized tools. A digital position memory system stores alignment settings for each format, eliminating the need for manual recalibration after switching—critical for facilities alternating between domestic and export orders.

Dynamic Vacuum Control

Veneers often vary in moisture content and surface texture, even within the same batch. The stacker’s pressure-regulated vacuum system adjusts suction in real-time, from -60kPa for dry, smooth veneers to -80kPa for damp or textured surfaces. A vacuum loss detection sensor continuously monitors pressure; if a leak is detected (e.g., from a torn sheet), the system pauses immediately to prevent misalignment or damage, with an alert sent to the operator dashboard.

Ergonomic Operation

The stacker prioritizes operator comfort and safety with a height-adjustable control panel (1.2–1.8m) featuring a 10-inch touchscreen interface. Real-time diagnostics, including cycle counts, vacuum pressure, and error codes, are displayed clearly, reducing troubleshooting time. An overhead safety guard with infrared sensors creates a protective zone above the stacking area, automatically stopping operation if an object or hand enters, while non-slip steps provide safe access for maintenance.

Integrated Quality Checks

To ensure only high-quality veneers proceed to stacking, the system includes thickness sensors at the entry conveyor that measure each sheet to within ±0.02mm. Sheets outside the specified tolerance (e.g., due to uneven sanding) are diverted to a reject bin, with data logged for quality control analysis. A barcode scanner reads labels on incoming sheets, linking each stack to production orders for full traceability—essential for meeting export documentation requirements.

Applications

Plywood Export Facilities: Efficiently handles 6' and 8' sheets, the standard sizes for North American, European, and Asian markets.

Construction Material Exporters: Supports bulk stacking of plywood used in flooring, wall panels, and formwork, ensuring stable transport in shipping containers.

Industrial Packaging: Processes veneers for high-strength crates, where uniform stacking prevents shifting during transit.

Marine Plywood Production: Handles moisture-resistant veneers treated with phenolic resins, with corrosion-resistant components to withstand humid environments.

FAQ

Q: What is the maximum weight the vacuum system can handle?

A: The system safely lifts individual sheets up to 8kg (typical for 8' x 4' marine plywood veneers) using distributed vacuum force to prevent bending.

Q: How often does the vacuum filter need replacement?

A: Filters should be inspected weekly and replaced every 500 operating hours (or sooner in dusty environments) to maintain suction efficiency.

Q: Can it operate in cold or humid climates?

A: Yes. The control system includes a climate-compensating feature that adjusts vacuum pressure in high humidity (≥80%) and pre-heats components in temperatures below 5°C to prevent condensation.

Q: What warranty is provided?

A: A 2-year warranty covers mechanical components, with a 1-year warranty on electronics. Extended warranties and on-site support packages are available.
