Focused on simplicity and reliability, this machine reduces operational complexity while maintaining consistent core composition quality. It is particularly well-suited for manufacturers transitioning from manual core assembly to automated processes.
Parameter | Details |
Automation Level | 4B1L Full Automated Control |
Processing Speed | 12–18 pieces per minute |
Positioning Accuracy | ±0.4mm |
Applicable Core Length | 500mm – 2400mm |
Power Requirement | 4.2kW (380V/50Hz) |
Machine Weight | 1500kg |
Footprint | 3.5m×2.8m |
Control Interface | User-friendly touchscreen with presets |
The 4B1L system consolidates all functions—feeding, alignment, and quality checks—into a single control module. This simplifies operation, with preset modes for common core sizes reducing setup time by 50% compared to manual adjustment.
With a footprint of 3.5m×2.8m, it fits into smaller workshops where space is limited. Its modular structure also allows for easy relocation if production layouts change.
Sensors automatically detect core thickness (3–10mm) and adjust alignment pressure accordingly, ensuring consistent bonding preparation across varying material dimensions.
The intuitive touchscreen interface requires minimal training. Operators can start production with a single button press, while built-in tutorials guide new users through basic functions.
Fewer moving parts compared to multi-unit systems reduce wear and tear. Routine maintenance (e.g., cleaning sensors, checking belt tension) takes less than 1 hour per week.
Perfect for workshops producing 1,000–3,000 plywood sheets daily, such as regional manufacturers serving local construction or furniture markets.
Ideal for producing non-standard plywood sizes (500mm–2400mm length) used in specialized applications like musical instruments, cabinetry inserts, or decorative panels.
Suitable for urban workshops or converted industrial spaces where floor area is limited, as its compact design minimizes space requirements.
An accessible entry point for new manufacturers transitioning from manual processes, offering automation benefits without the high cost of larger systems.
It accommodates core lengths from 500mm to 2400mm, making it versatile for both standard and custom plywood sizes.
Installation typically takes 1–2 days, including power connection, calibration, and basic operator training.
While designed for small to medium volumes, it can be paired with additional feeding stations to increase throughput by up to 40% if production needs grow.
Key components (motors, sensors, control module) have an average lifespan of 6–8 years under standard operating conditions, with replacement parts readily available.
CXCT-4b1L（Fully Servo） | |||
Overall Dimensions (L×W×H) | 13.5m*4.2m*2.3m米 | ||
Total Power Consumption | 33.7kW | Performance (Line Speed) | 36m/min |
Feed Thickness | 1.2-4.0mm | Output Board Dimensions (Standard) | 4'*4' 4'*8' |
Air Consumption | 320L/min | weight | 6.8T |

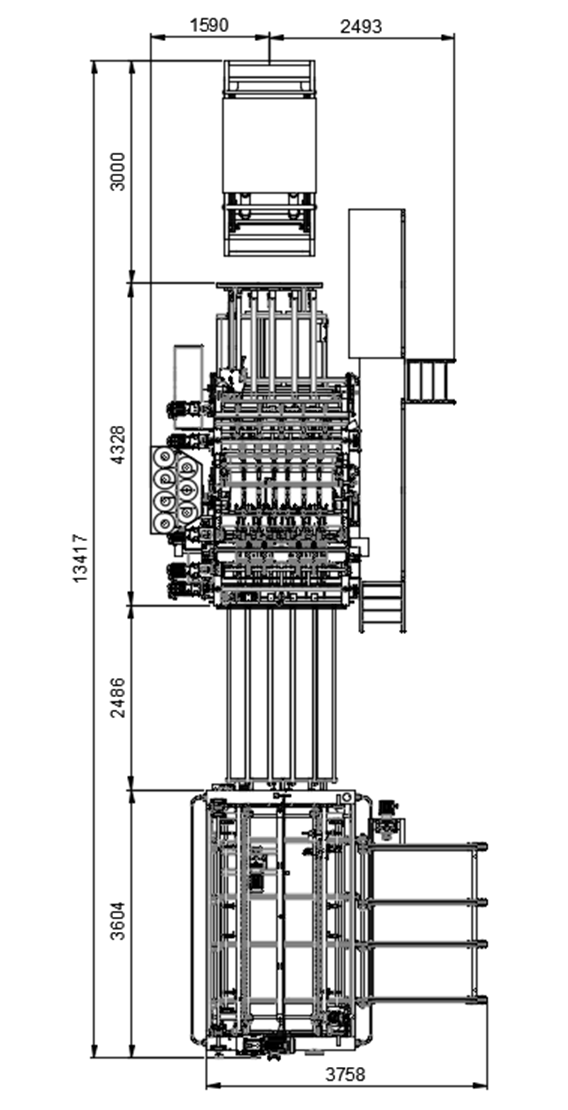

Layout Drawing
