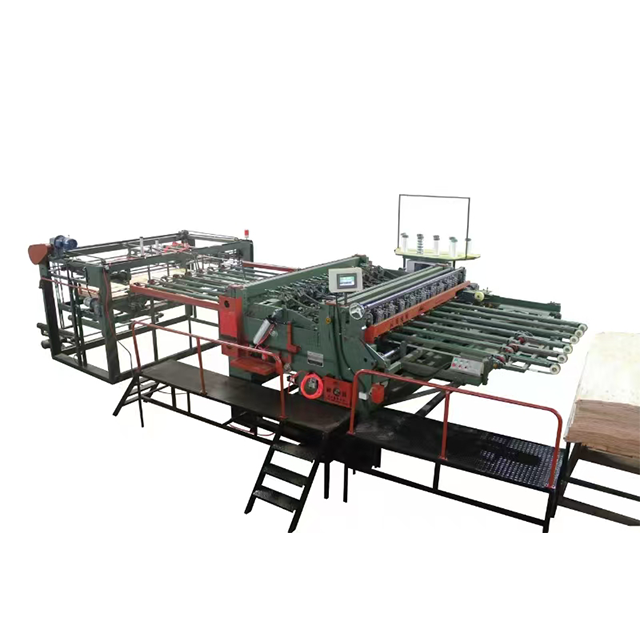

Ideal for medium to large-scale plywood facilities, it integrates seamlessly into existing production lines, addressing the challenges of precise core alignment— a critical factor in ensuring plywood strength and structural integrity. By standardizing core composition, it helps manufacturers meet industry quality standards while optimizing labor costs and throughput.
Parameter | Details |
Target Core Size | 8'×4' (2440mm×1220mm) |
Processing Speed | 15–20 pieces per minute |
Positioning Accuracy | ±0.5mm |
Applicable Core Thickness | 3mm – 12mm |
Power Requirement | 5.5kW (380V/50Hz) |
Machine Weight | 1800kg |
Operating Temperature | 0°C – 40°C |
Control System | PLC-based with touchscreen interface |
Tailored explicitly for 8'×4' core sheets—the most common plywood dimension in global markets—this composer eliminates the need for pre-cutting adjustments, reducing material waste by up to 8% compared to universal machines.
Equipped with optical sensors and mechanical guides, the system ensures each core piece is positioned with ±0.5mm accuracy. This precision minimizes gaps between core layers, directly improving the plywood’s load-bearing capacity.
From core feeding to final alignment, the entire process is automated. Operators only need to monitor the touchscreen interface, adjusting parameters such as speed or core thickness as needed. This reduces human error and lowers training requirements for staff.
Built with high-grade steel frames and wear-resistant components, the machine is designed for continuous operation in industrial environments, with a projected service life of 8–10 years under standard maintenance.
The 5.5kW motor is optimized for low energy consumption, with an auto-idle function that reduces power usage by 30% during downtime— a key consideration for cost-conscious manufacturers.
Primarily used in manufacturing 8'×4' plywood sheets for construction, furniture, and packaging industries. Its size compatibility ensures it fits seamlessly into production lines focused on mainstream plywood products.
Critical for producing structural plywood used in flooring, roofing, and wall sheathing, where core alignment directly impacts durability under heavy loads.
Ideal for medium-density plywood cores used in cabinetry, shelves, and tabletops, where consistent core composition prevents warping or cracking over time.
Suitable for producing plywood used in heavy-duty crates and shipping containers, where dimensional stability is essential for protecting goods during transit.
It is compatible with common plywood core materials, including softwood strips, hardwood veneers, and composite cores, as long as they fit the 8'×4' size and 3–12mm thickness range.
Routine maintenance (cleaning sensors, lubricating moving parts) is recommended every 200 operating hours. Major component checks are advised annually to ensure optimal performance.
Yes, it is designed with standard industrial interfaces, allowing connection to upstream core cutters and downstream glue spreaders or presses.
The machine requires a minimum space of 4.5m×3.0m (including clearance for material loading and operator access).
CXCT-8C2 | |||
Overall Dimensions (L×W×H) | 13.2m*5.5m*2.3m | ||
Total Footprint (with standard receiving rack) | 15.2m*7.5m | ||
Total Power Consumption | 40.5KW | Performance (Line Speed) | 30m/min |
Feed Thickness | 1.2-4.0mm | Output Board Dimensions (Standard) | 8'×4' |
(0.6~0.8MPa)Air Consumption | 700L/min | weight | 9.7T |

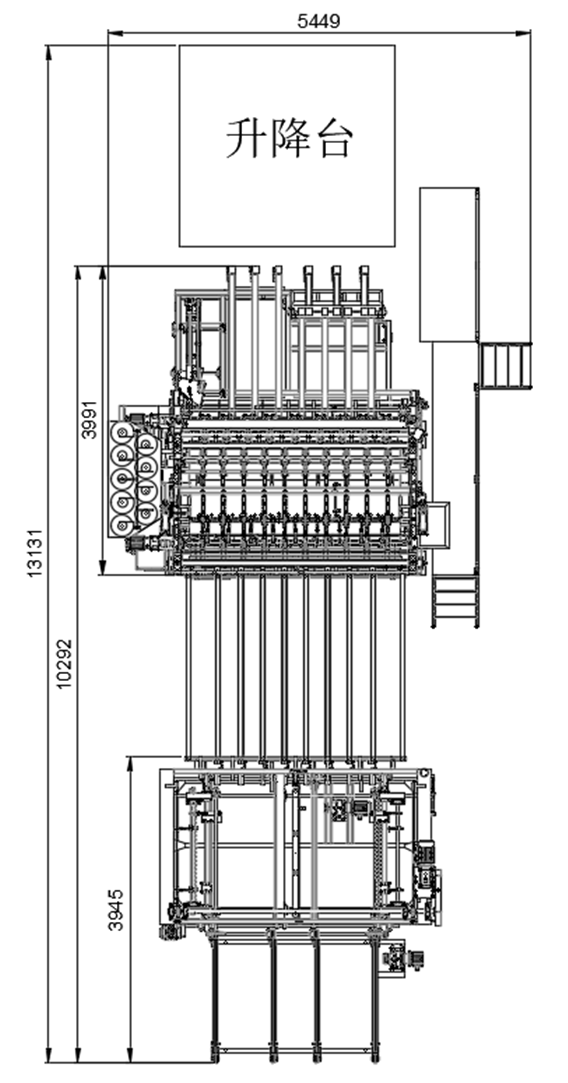

Layout Drawing
