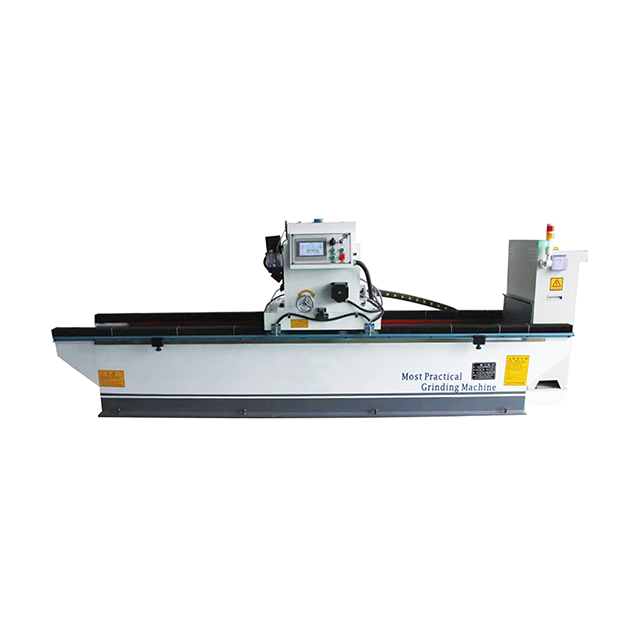

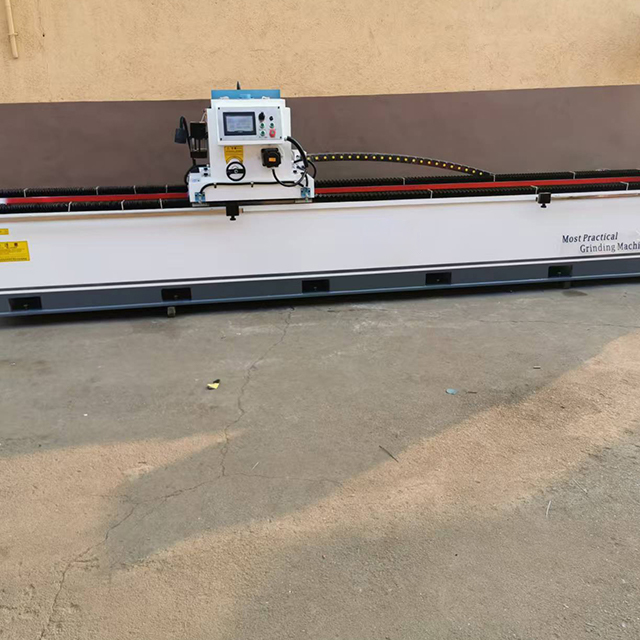

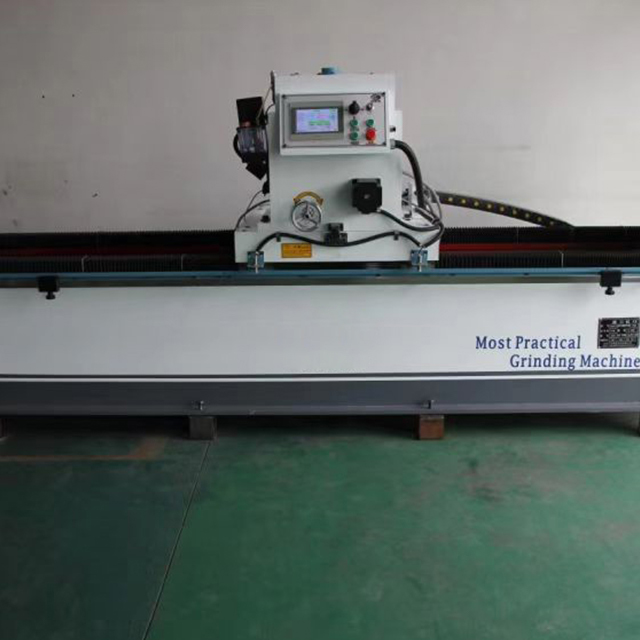

Parameters Of LMD-MK7130 CNC Precision Tool Sharpening Machine
Maximum grinding length | 3200mm |
Worktable size (L×W) | 1550mm*200mm*2（Heavy-duty Special-purpose Electromagnetic Chuck ） |
Disk Type | Electromagnetic Chuck |
Grinding wheel dimensions | 300*100*250mm（Optional at Will） |
Cooling system | External water tank with water pump for spray circulation cooling |

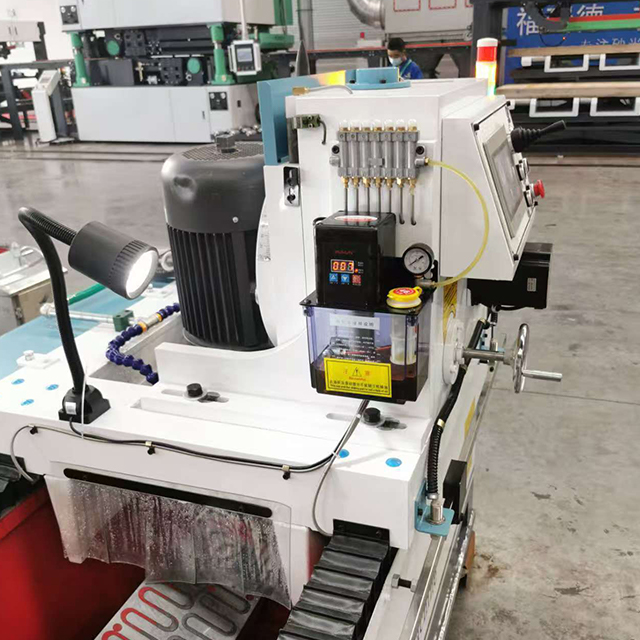

Lubrication system | The entire machine uses computer numerical control (CNC) centralized oil supply. |
Inside the machine tool | The screw adopts a precision rolling screw. |
Guide rail | Using a 45# square guide rail from Taiwan Shangyin. |
Protective cover | Using an accordion-type stretch protective cover for dust and water resistance. |
Grinding accuracy | ≤0.03mm |
Working Voltage | 380v（Customizable voltage） |
Grinding head transmission method | Gear and rack with inverter variable speed control |
Back-and-forth speed of grinding head | 0-17mm(Arbitrary speed adjustment) |
Adjustable grinding head angle | ±5° |
Adjustable table angle | ±90° |

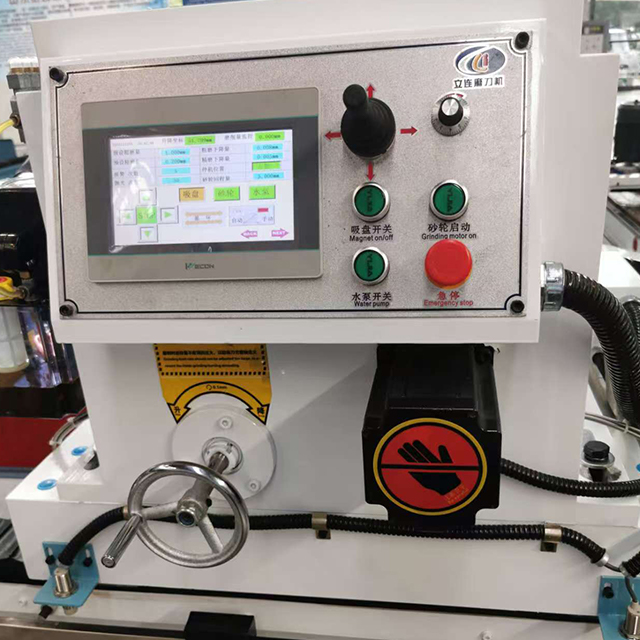

Control method | Utilizing a combination of a touchscreen and buttons for practical operation. |

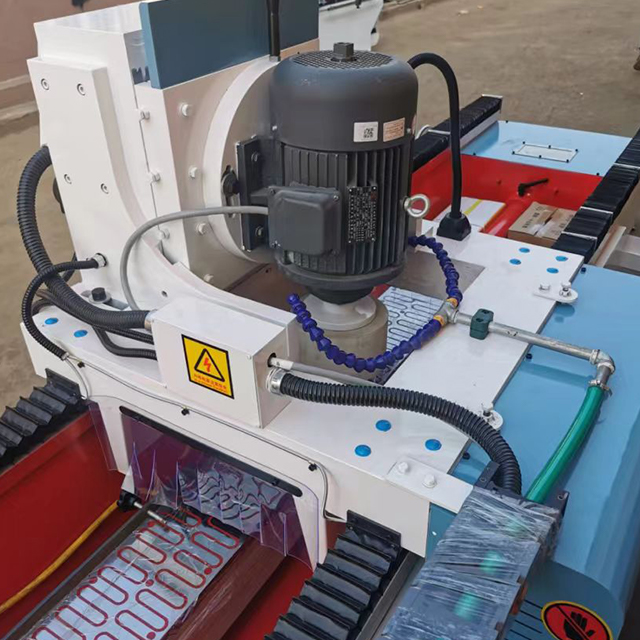

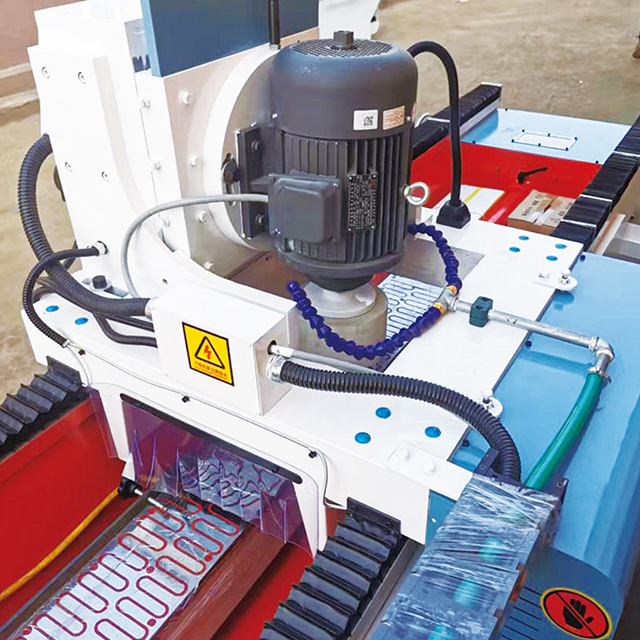

Grinding head motor power | 11.0KW-1440r/min （Dedicated grinding head motor） |
lifting motor power | 1.5KW（CNC dedicated motor） |
Travel motor power | 1.5KW（Frequency conversion dedicated motor） |
Water pump motor power | 0.125KW |
Total power | 14.5KW |
Total Weight | 3800KG |
Overall Dimensions | 5850*1300*1500mm |
 |  |  |  |
 |  |  |  |
